| R-1300 | |
|---|---|
) | |
| Type | Radial engine |
| National origin | United States |
| Manufacturer | Wright Aeronautical |
| First run | 1942 |
| Major applications | North American T-28 Trojan |
| Developed from | Wright R-2600 |

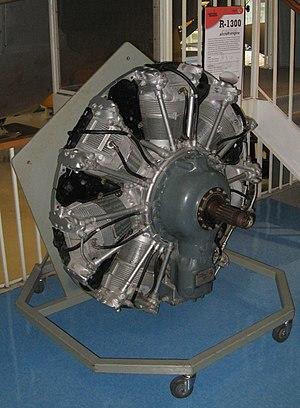

The Wright R-1300 Cyclone 7 is an American air-cooled seven-cylinder supercharged radial aircraft engine produced by Curtiss-Wright.[1]
Design and development
The R-1300 is basically a single row Wright R-2600. The engine was mass-produced but not widely used. Engineering began in 1942 but the first flight of an R-1300 did not take place until 1949. The engine was produced under license by Kaiser-Frazer and later by AVCO Lycoming.[2]
The engine was used in combat — the R-1300-1A and -1B in the A model North American T-28 Trojan and the R-1300-3, -3A, -3C and -3D in the Sikorsky H-19 Chickasaw. The R-1300-1B was used to power the Ayres Thrush. The R-1300-4 and -4A were used in the N class blimp; 50 of these variants were produced by AVCO.[2]
Early-production engines had vibration problems, an improved lateral dampener in the crank brought about most of the model changes.[2]
Variants
- R-1300-1A
- R-1300-2
- A direct drive version of the R-1300-1. It had a 0.5625:1 reduction drive. Both used the PD9F1 carburetor.[2]
- R-1300-2A
- R-1300-3
- Derated to 690.3 hp (515 kW), uses forced-air cooling fan and uses a PD9G1 carburetor.[2]
- R-1300-4
- Similar to the R-1300-1, uses some different accessory components.[2]
- R-1300-CB7A1
- With reduction gear for use on fixed wing aircraft.
Applications
- N class blimp
- North American T-28 Trojan
- Rockwell Thrush Commander
- Sikorsky H-19
- Westland Whirlwind
Specifications (R-1300-1A)
Data from Type Certificate Data Sheet 5E-14.[1]
General characteristics
- Type: 7-cylinder supercharged air-cooled single row radial engine
- Bore: 6.125 in (155.6 mm)
- Stroke: 6.312 in (160.2 mm)
- Displacement: 1,301 cu in (21.3 L)
- Length: 48.22 in (1,225 mm)
- Diameter: 55 in (1,397 mm)
- Dry weight: 1,055 lb (478 kg)
Components
- Valvetrain: Two pushrod-actuated valves per cylinder with sodium-cooled exhaust valve
- Supercharger: 1-stage
- Fuel system: Bendix-Stromberg PD9F1 downdraft carburetor with automatic mixture control
- Cooling system: Air-cooled
Performance
- Power output: 800 hp (596 kW)
- Specific power: 0.61 hp/in³ (27.94 kW/L)
- Compression ratio: 6.20:1
- Power-to-weight ratio: 0.76hp/lb (1.25 kW/kg)
See also
Related development
- Wright Cyclone series
- Wright R-1820 Cyclone 9
- Wright R-2600 Twin Cyclone
- Wright R-3350 Duplex Cyclone
Related lists
References
