Socket 478

Socket 478

Type	PGA-ZIF
Chip form factors	Flip-chip pin grid array (FC-PGA2 or FC-PGA4)
Contacts	478 (not to be confused with the new Socket P or the similar Socket 479)
FSB protocol	AGTL+
FSB frequency	400 MT/s 533 MT/s 800 MT/s
Processor dimensions	35 mm x 35 mm[1]
Processors	Pentium 4 (1.4 - 3.4 GHz) Celeron (1.7 - 2.8 GHz) Celeron D (2.13 - 3.2 GHz) Pentium 4 Extreme Edition (3.2, 3.4 GHz)
Predecessor	Socket 423
Successor	LGA 775
This article is part of the CPU socket series

Pentium 4 Willamette with Socket 478 (2001), pin side

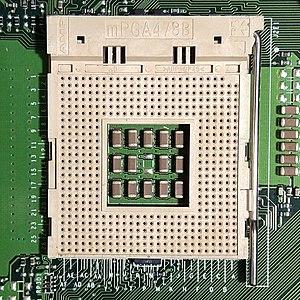

Socket 478 (also known as mPGA478, mPGA478B) is a 478-contact CPU socket used for Intel's Pentium 4 and Celeron series CPUs.

Socket 478 was launched with the Northwood core to compete with AMD's 462-pin Socket A and their Athlon XP processors. Socket 478 was intended to be the replacement for Socket 423, a Willamette-based processor socket which was on the market for only a short time. Socket 478 was phased out with the launch of LGA 775 in 2004.

Technical specifications

Socket 478 was used for all Northwood Pentium 4 and Celeron processors. It supported the first Prescott Pentium 4 processors and all Willamette Celerons, along with several of the Willamette-series Pentium 4s. Socket 478 also supported the newer Prescott-based Celeron D processors, and early Pentium 4 Extreme Edition processors with 2 MiB of L3 CPU cache.

Celeron D processors were also available for Socket 478 and were the last CPUs made for the socket.

While the Intel mobile CPUs are available in 478-pin packages, they in fact only operate in a range of slightly differing sockets, Socket 479, Socket M, and Socket P, each incompatible with the other two.

Socket 478 is used in combination with DDR SDRAM.

Mechanical load limits

All socket (Pentium 4 and Celeron) have the following mechanical maximum load limits which should not be exceeded during heatsink assembly, shipping conditions, or standard use. Load above those limits will crack the processor die and make it unusable.

Chipsets

Intel

See List of Intel chipsets#Pentium 4 chipsets
