| Santa Fe 2913 |
|---|

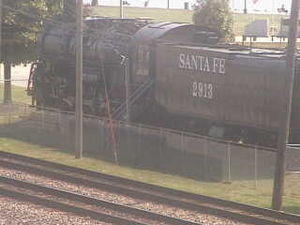

 Santa Fe 2913 on display. |
|
| Specifications |
|---|
Configuration:
| |
|---|
| • Whyte | 4-8-4 |
|---|
| Gauge | 4 ft 8 1&fras1;2 in (1,435 mm) |
|---|
| Driver dia. | 80 in (2,000 mm) |
|---|
| Length | 120 ft 10 in (36.83 m) |
|---|
| Adhesive weight | 294,000 lb (133,000 kg) |
|---|
| Loco weight | 510,700 lb (231,600 kg)[2] |
|---|
| Total weight | 974,850 lb (442,180 kg) |
|---|
| Fuel type | fuel oil |
|---|
| Fuel capacity | 7,000 US gal (26,000 l; 5,800 imp gal) |
|---|
| Water cap | 24,500 US gal (93,000 l; 20,400 imp gal) |
|---|
Firebox:
• Firegrate area | 108 sq ft (10.0 m2) |
|---|
| Boiler pressure | 300 psi (2.1 MPa) |
|---|
| Cylinders | 2 |
|---|
| Cylinder size | 28 in × 32 in (710 mm × 810 mm) |
|---|
|
|
|
Santa Fe 2913 is a 4-8-4 locomotive, part of the Santa Fe Class 2900. It was built in the 1940s and is on display in a park in Fort Madison, Iowa,[3] having been donated to the town upon retirement.[4] It is currently undergoing cosmetic restoration.
