The San Andreas Fault is a continental transform fault that extends roughly 810 miles (1,300 km) through California in the United States. It forms the tectonic boundary between the Pacific Plate and the North American Plate, and its motion is right-lateral strike-slip (horizontal). The fault divides into three segments, each with different characteristics, and a different degree of earthquake risk.
The origins of the fault can be traced back to the subduction of a spreading ridge 30 million years ago, although the most significant (Southern) segment only dates back about 5 million years. The fault was first identified in the Northern zone by the UC Berkeley geology professor Andrew Lawson in 1895. After the 1906 San Francisco Earthquake, Lawson discovered that it extended into southern California, and Thomas Dibblee’s assertion in 1953 that it ran for hundreds of miles took the scientific establishment by surprise.[1]
Speculation about ‘the next big one’ is the subject of formal study at the University of California, and the San Andreas Fault at Depth (SAFOD) is drilling deep into the fault, to improve recording and prediction of quakes.
The Three Segments
)
){kind=small}
)
Southern segment
The southern segment (known as the Mojave segment) begins near Bombay Beach, California. Box Canyon, near the Salton Sea, contains upturned strata associated with that section of the fault.[2] The fault then runs along the southern base of the San Bernardino Mountains, crosses through the Cajon Pass and continues northwest along the northern base of the San Gabriel Mountains. These mountains are a result of movement along the San Andreas Fault and are commonly called the Transverse Range. In Palmdale, a portion of the fault is easily examined at a roadcut for the Antelope Valley Freeway. The fault continues Northwest alongside the Elizabeth Lake Road to the town of Elizabeth Lake. As it passes the towns of Gorman, Tejon Pass and Frazier Park, the fault begins to bend northward, forming the "Big Bend". This restraining bend is thought to be where the fault locks up in Southern California, with an earthquake-recurrence interval of roughly 140–160 years. Northwest of Frazier Park, the fault runs through the Carrizo Plain, a long, treeless plain where much of the fault is plainly visible. The Elkhorn Scarp defines the fault trace along much of its length within the plain.
The Southern segment, which stretches from Parkfield in Monterey County all the way down to the Salton Sea, is capable of a Richter scale 8.1 magnitude earthquake. At its closest, this fault passes about 35 miles to the northeast of Los Angeles. Such a large earthquake on this Southern segment would kill thousands of people in Los Angeles, San Bernandino, Riverside, and surrounding areas, and cause hundreds of billions of dollars in damage.[3]
Central segment
The central segment of the San Andreas fault runs in a northwestern direction from Parkfield to Hollister. While the southern section of the fault and the parts through Parkfield experience earthquakes, the rest of the central section of the fault exhibits a phenomenon called aseismic creep, where the fault slips continuously without causing earthquakes.
)
Northern segment
The northern segment of the fault runs from Hollister, through the Santa Cruz Mountains, epicenter of the 1989 Loma Prieta earthquake, then on up the San Francisco Peninsula, where it was first identified by Professor Lawson in 1895, then offshore at Daly City near Mussel Rock. This is the approximate location of the epicenter of the 1906 San Francisco earthquake. The fault returns onshore at Bolinas Lagoon just north of Stinson Beach in Marin County. It returns underwater through the linear trough of Tomales Bay which separates the Point Reyes Peninsula from the mainland, runs just east of the Bodega Heads through Bodega Bay and back underwater, returning onshore at Fort Ross. (In this region around the San Francisco Bay Area several significant "sister faults" run more-or-less parallel, and each of these can create significantly destructive earthquakes.) From Fort Ross the northern segment continues overland, forming in part a linear valley through which the Gualala River flows. It goes back offshore at Point Arena. After that, it runs underwater along the coast until it nears Cape Mendocino, where it begins to bend to the west, terminating at the Mendocino Triple Junction.
Evolution
)

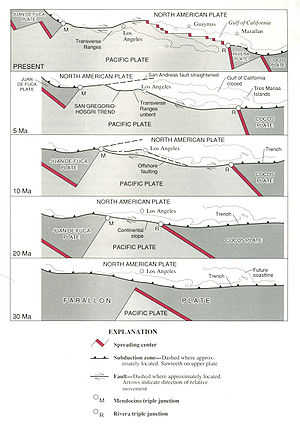

The evolution of the San Andreas dates back to the mid Cenozoic, to about 30 Mya (million years ago).[4] At this time, a spreading center between the Pacific Plate and the Farallon Plate (which is now mostly subducted, with remnants including the Juan de Fuca Plate, Rivera Plate, Cocos Plate, and the Nazca Plate) was beginning to interact with the subduction zone off the western coast of North America. The relative motion between the Pacific and North American Plates was different from the relative motion between the Farallon and North American Plates, so when the spreading ridge was "subducted", a new relative motion caused a new style of deformation. This style is chiefly the San Andreas Fault, but also includes a possible driver for the deformation of the Basin and Range, separation of Baja California, and rotation of the Transverse Range.
The San Andreas Fault proper, at least the Southern Segment, has only existed for about 5 million years.[5] The first known incarnation of the southern part of the fault was Clemens Well-Fenner-San Francisquito fault zone around 22–13 Ma. This system added the San Gabriel Fault as a primary focus of movement between 10–5 Ma. Currently, it is believed that the modern San Andreas will eventually transfer its motion toward a fault within the Eastern California Shear Zone. This complicated evolution, especially along the southern segment, is mostly caused by either the "Big Bend" and/or a difference in the motion vector between the plates and the trend of the fault(s).
Plate motion

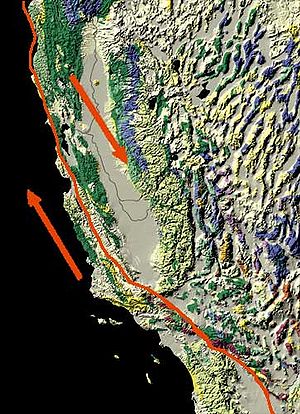

All land west of the fault on the Pacific Plate is moving slowly to the northwest while all land east of the fault is moving southwest (relatively southeast as measured at the fault) under the influence of plate tectonics. The rate of slippage averages about 33 to 37 millimeters (1.3 to 1.5 in) a year across California.[6]
The westward component of the motion of the North American Plate creates compressional forces which are expressed as uplift in the Coast Ranges. Likewise, the northwest motion of the Pacific Plate creates significant compressional forces where the North American Plate stands in its way, creating the Transverse Ranges in Southern California, and to a lesser, but still significant, extent the Santa Cruz Mountains, site of the Loma Prieta Earthquake of 1989.
Studies of the relative motions of the Pacific and North American plates have shown that only about 75 percent of the motion can be accounted for in the movements of the San Andreas and its various branch faults. The rest of the motion has been found in an area east of the Sierra Nevada mountains called the Walker Lane or Eastern California Shear Zone. The reason for this is not clear, although several hypotheses have been offered and research is ongoing. One hypothesis which gained some currency following the Landers Earthquake in 1992 is that the plate boundary may be shifting eastward, away from the San Andreas to the Walker Lane.
Assuming the plate boundary does not change as hypothesized, projected motion indicates that the landmass west of the San Andreas Fault, including Los Angeles, will eventually slide past San Francisco, then continue northwestward toward the Aleutian Trench, over a period of perhaps twenty million years.
Scientific research
)
UC Berkeley
The fault was first identified in Northern California by the UC Berkeley geology professor Andrew Lawson in 1895 and named by him after a small lake which lies in a linear valley formed by the fault just south of San Francisco, the Laguna de San Andreas. After the 1906 San Francisco Earthquake, Lawson also discovered that the San Andreas Fault stretched southward into southern California. Large-scale (hundreds of miles) lateral movement along the fault was first proposed in a 1953 paper by geologists Mason Hill and Thomas Dibblee. This idea was considered radical at the time, but has been vindicated by modern plate tectonics.
Parkfield
In central California is the small town of Parkfield, which lies along the San Andreas Fault. Seismologists discovered that this section of the fault consistently produces magnitude 6.0 earthquakes about every 22 years. Following earthquakes in 1857, 1881, 1901, 1922, 1934, and 1966, scientists predicted an earthquake to hit Parkfield in 1993. This quake eventually struck in 2004 (see Parkfield earthquake). Because of this frequent activity and prediction, Parkfield has become one of the most popular spots in the world to try to record large earthquakes.
In 2004, work began just north of Parkfield on the San Andreas Fault Observatory at Depth (SAFOD). The goal of SAFOD is to drill a hole nearly 2 miles (3.2 km) into the Earth's crust and into the San Andreas Fault. An array of sensors will be installed to record earthquakes that happen near this area.[8]
University of California study on "the next big one"
A study[9] completed by Yuri Fialko in 2006 has demonstrated that the San Andreas fault has been stressed to a level sufficient for the next "big one," as it is commonly called; that is, an earthquake of magnitude 7.0 or greater. The study also concluded that the risk of a large earthquake may be increasing more rapidly than researchers had previously believed. Fialko also emphasized in his study that, while the San Andreas Fault had experienced massive earthquakes in 1857 at its central section and in 1906 at its northern segment (the 1906 San Francisco earthquake), the southern section of the fault has not seen a similar rupture in at least 300 years.
If such an earthquake were to occur, Fialko's study stated, it would result in substantial damage to Palm Springs and a number of other cities in San Bernardino, Riverside and Imperial counties in California, and Mexicali municipality in Baja California. Such an event would be felt throughout much of Southern California, including densely populated areas of metropolitan San Bernardino, Los Angeles, Orange County, San Diego, Ensenada and Tijuana, Baja California, San Luis Rio Colorado in Sonora and Yuma, Arizona.
"The information available suggests that the fault is ready for the next big earthquake but exactly when the triggering will happen and when the earthquake will occur we cannot tell," Fialko said. "It could be tomorrow or it could be 10 years or more from now," he concluded in September 2005.
Cascadia connection
Recent studies of past earthquake traces on both the northern San Andreas Fault and the southern Cascadia subduction zone indicate a correlation in time which may be evidence that quakes on the Cascadia subduction zone may have triggered most of the major quakes on the northern San Andreas during at least the past 3,000 years or so. The evidence also shows the rupture direction going from north to south in each of these time-correlated events. The 1906 San Francisco earthquake seems to have been a major exception to this correlation, however, as it was not preceded by a major Cascadia quake, and the rupture moved mostly from south to north.[10]
Notable earthquakes
The San Andreas Fault has had some notable earthquakes in historic times:
- 1857 Fort Tejon earthquake: About 217 miles (349 km) were ruptured in central and southern California. Though it is known as the Fort Tejon earthquake, the epicenter is thought to have been located far to the north, just south of Parkfield. Only two deaths were reported. The magnitude was about 7.9.
- 1906 San Francisco earthquake: About 267 miles (430 km) were ruptured in Northern California. The epicenter was near San Francisco. At least 3000 people died in the earthquake and subsequent fires. This time the magnitude was estimated to be 7.8.
- 1989 Loma Prieta earthquake: About 25 miles (40 km) were ruptured (although the rupture did not reach the surface) near Santa Cruz, California, causing 63 deaths and moderate damage in certain vulnerable locations in the San Francisco Bay Area. Moment magnitude this time was about 6.9. The earthquake also postponed game 3 of the 1989 World Series at Candlestick Park. This quake occurred on October 17, 1989, at approximately 5:04 P.M. PDT.
- 2004 Parkfield earthquake: On September 28, 2004, at 10:15 A.M. PDT, a magnitude 6.0 earthquake struck California on the San Andreas Fault. It was felt across the state, including the San Francisco Bay Area.
The Next One
Ever since the 1906 San Francisco earthquake showed what the San Andreas fault can do, the public and the scientists alike have wondered: when is The Next One? Some way of predicting major earthquakes with sufficient precision to warrant taking increased precautions has long been sought, but remains elusive.[11] Nonetheless, the 2008 Uniform California Earthquake Rupture Forecast (UCERF) has estimated that the probability of an M ≥ 6.7 earthquake within the next 30 years on the northern and southern segments of the San Andreas fault as 21% and 59%, respectively.
See also
- Central Valley (California)
- Coast Range Geomorphic Province
- Garlock Fault
- Geologic timeline of Western North America
- North Anatolian Fault
- Ramapo Fault
References
- ^ Mason L. Hill and Thomas Dibblee “San Andreas, Garlock, and Big faults, California,” Geological Society of America Bulletin, April 1953, p. 443-458
- ^ Americansouthwest.net "Box Canyon"
- ^ Rong-Gong Lin II (October 8, 2010). "San Andreas fault capable of magnitude 8.1 earthquake over 340-mile swath of California, researchers say". Los Angeles Times. Retrieved 2012-02-17.
- ^ Atwater, T., 1970, Implications of Plate Tectonics for the Cenozoic Tectonic Evolution of Western North America
- ^ Powell, R.E., and Weldon, R.J., 1992, Evolution of the San Andreas fault: Annual Reviews of Earth and Planetary Science, v. 20, p. 431–468.
- ^ Wallace, Robert E. "Present-Day Crustal Movements and the Mechanics of Cyclic Deformation". The San Andreas Fault System, California. Retrieved 2007-10-26.
- ^ NASA (June 23, 2009). "NASA Radar Provides 3-D View of San Andreas Fault". National Aeronautics and Space Administration. Retrieved 2012-02-17.
- ^ "San Andreas Fault Observatory at Depth". USGS Earthquake Hazards Program.
- ^ Fialko, Yuri (2006). "Interseismic strain accumulation and the earthquake potential on the southern San Andreas fault System" (PDF). Nature 441 (7096): 968–971. Bibcode:2006Natur.441..968F. doi:10.1038/nature04797. PMID 16791192.
- ^ BSSA (April 3, 2008). "Earthquakes Along The Cascadia And San Andreas Faults May Be Linked, Affecting Risk To San Francisco Bay Region". Seismological Society of America. Retrieved 2012-02-17.
- ^ Geller, Robert J. (Dec. 1997), "Earthquake prediction: a critical review", Geophysical Journal International 131 (3): 425—450, Bibcode:1997GeoJI.131..425G, doi:10.1111/j.1365-246X.1997.tb06588.x
Further reading
- Collier, Michael (December 1, 1999). A Land in Motion. UC Press. ISBN 0-520-21897-3.
- Stoffer, Philip W. (2006). Where's the San Andreas fault? A guidebook to tracing the fault on public lands in the San Francisco Bay region. USGS. General Interest Publication 16.
- The California Earthquake of April 18, 1906: Report of the State Earthquake Investigation Commission, Andrew C. Lawson, chairman, Carnegie Institution of Washington Publication 87, 2 vols. (1908) - Available online at this USGS webpage.
- Lynch, David K. (2006). Field Guide to the San Andreas Fault: See and Touch the World's Most Famous Fault on any one of Twelve Easy Day Trips. Thule Scientific. ISBN 0-9779935-0-7. Full color, GPS coordinates,.
