| SNCF BB47000/Alstom Prima 6000 |
|---|
 |
| Type and origin |
|---|
| Power type | Electric |
|---|
| Builder | Alstom |
|---|
| Build date | 2003 |
|---|
|
| Specifications |
|---|
Configuration:
| |
|---|
| • UIC | Bo′Bo′ |
|---|
| Gauge | 1,435 mm (4 ft 8 1&fras1;2 in) standard gauge |
|---|
| Length | 19.72 m (64 ft 8 in) |
|---|
| Loco weight | 90 short tons (82 t; 80 long tons) |
|---|
| Electric system/s | Catenary
1500 V DC
3000 V DC
15 kV 16.7 Hz AC
25 kV 50 Hz AC |
|---|
| Current pickup(s) | Pantograph |
|---|
| Traction motors | 4×Alstom FRA 4567 with IGBT powerpacks |
|---|
| Safety systems | Crocodile, KVB, TBL, ETCS |
|---|
|
| Performance figures |
|---|
| Maximum speed | 140 km/h (87 mph) |
|---|
| Power output | 6,000 kW (8,000 hp) |
|---|
|
| Career |
|---|
| Operators | Alstom |
|---|
| Number in class | 1 |
|---|
| Nicknames | Prima 6000 |
|---|
| First run | 2003 |
|---|
| Withdrawn | 2009 |
|---|
| Disposition | out of service |
|---|
|

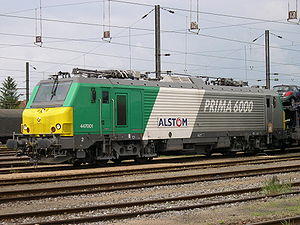

The SNCF Class BB 47000 "Prima" electric locomotive is a 6,000 kW (8,000 hp) locomotive, built by Alstom. This locomotive is the quadruple-voltage version of the Class BB 27000. So far, only one locomotive, numbered 47001, has been built and was tested by Fret SNCF with a view for further orders. In 2006 it became clear that SNCF wouldn't order this version anymore and the locomotive had passed on to Alstom as a permanent test bed locomotive for testing different Alstom technologies. In 2009, the locomotive was devoid of all technical components. Its bogies were re-used by the Prima II-prototype.[1] The locomotive is now stored outside Alstom's Belfort plant.
