North Kent Line

North Kent Line

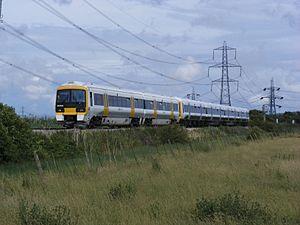

A Southeastern Class 466 passing Milton Range in 2011
Overview
Status	Operational
Owner	Network Rail
Locale	Greater London South East England
Termini	London Charing Cross London Cannon Street Gillingham Dartford
Service
Type	Commuter rail, Suburban rail
System	National Rail
Operator(s)	Southeastern Thameslink
Depot(s)	Slade Green Grove Park Gillingham
Rolling stock	Class 375 "Electrostar" Class 376 "Electrostar" Class 395 "Javelin" Class 465 "Networker" Class 466 "Networker" Class 700 "Desiro City"
Technical
Number of tracks	2
Track gauge	1,435 mm (4 ft 8 1&fras1;2 in) standard gauge
Electrification	750 V DC third rail
Operating speed	90 mph (145 km/h)

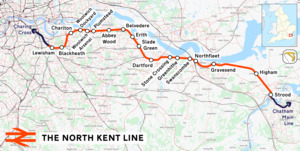

Route map (Click to expand)

North Kent Line
South Eastern Main Line Fast & Slow Lines to Charing Cross Nunhead to Lewisham link to Nunhead St Johns Jn Lewisham Jn Docklands Light Railway to Canary Wharf and Bank Lewisham Mid Kent Line to Hayes South Eastern Main Line and Dartford Loop Line Blackheath Bexleyheath Line Blackheath Tunnel 1681 yd 1537 m Greenwich Line to North Kent East Jn Angerstein Wharf aggregates Charlton Jn Charlton Charlton Lane Crossing Charlton Tunnel 154 yd 141 m Mount Street Tunnel 121 yd 111 m Dockyard Tunnel 121 yd 111 m Woolwich Dockyard Coleman Street Tunnel 89 yd 81 m George IV Tunnel 238 yd 218 m Calderwood Street Tunnel 58 yd 53 m Cross Street Tunnel 134 yd 123 m Crossrail to Reading or Heathrow Terminal 4 Woolwich Arsenal & Woolwich Docklands Light Railway to Canning Town and Bank or Stratford Int'l Plumstead to Royal Arsenal Plumstead Carriage Sidings (NR) Church Manor Way Halt Plumstead Carriage Sidings (Crossrail) Abbey Wood Crossrail boundary Belvedere Erith Pier Erith Slade Green Bexleyheath Line Slade Green Depot River Cray Dartford Loop Line Dartford River Darent Dartford Carriage Sidings A282 Dartford Tunnel Approach Stone Crossing Greenhithe for Bluewater Greenhithe Tunnel 253 yd 231 m Swanscombe High Speed 1 to St Pancras Northfleet Ebbsfleet International High Speed 1 to Channel Tunnel Gravesend West Line Gravesend Milton Road Halt Denton Halt Milton Range Halt Hoo Junction Staff Halt Down platform Hundred of Hoo Railway to the Isle of Grain Hoo Junction Staff Halt Up platform Hoo Junction Freight Yard Higham Higham and Strood Tunnels 3931 yd 3595 m Strood (Original terminus) Strood Chatham Main Line to London Victoria Medway Valley Line to Paddock Wood Rochester Bridge Junction River Medway Rochester Chatham Main Line to Dover Priory and Ramsgate

The North Kent Line^[1][2] is a railway line which branches off the South East Main Line at St Johns junction west of Lewisham station in Greater London and runs to Rochester Bridge Junction near Strood, Medway where it links to the Chatham Main Line.

The section from Charlton to Dartford is also referred to as the "Woolwich Line" in the context of Southeastern Metro services.

History

Construction

The North Kent Line was the means by which the South Eastern Railway (SER) was able to connect its system to London at London Bridge. In 1846 the SER purchased the Thames and Medway Canal tunnel near Higham and laid railway tracks through it; in 1847 trains were working through from the Strood terminus, on the River Medway to Gravesend. From 30 July 1849 the line was extended, via Blackheath, to a junction with the London and Greenwich Railway at North Kent East Junction, near Deptford, and through trains were now able to operate.

Electrification

The line is electrified (750 V DC third rail). Electrification was initially to Dartford (6 June 1926) and was extended to Gillingham by World War Two.

Former services

Between 1999 and 2002, there were semi-fast trains running from Plumstead to London Victoria briefly resuming a 1980s service pattern. This service was for the Millennium Dome; the service called at, Woolwich Arsenal, Charlton, Blackheath, Lewisham, Peckham Rye then non-stop to London Victoria. There was also an early morning semi-fast service to London Blackfriars from Dartford in the 1980s.

In 2003, there were plans to run a Plumstead to Clapham Junction service across South London, but it never came to fruition.

Route

The line diverges from the Southeastern Main Line at Lewisham Vale junction^[3][4] at the country end of St John's station at the edge of Inner London, and runs as far as Rochester Bridge junction^[5][6] beside the River Medway by the north coast of historic mid-Kent.

Services

The North Kent Line is a high-frequency line, with all stations in the London area being served by at least 4 trains per hour, with Lewisham having 14tph.

London Charing Cross to Dartford 2tph, calling at Waterloo East, London Bridge fast to Lewisham (for Docklands Light Railway), Blackheath, Charlton, Woolwich Dockyard, Woolwich Arsenal (for the Docklands Light Railway), Plumstead, Abbey Wood (Future interchange with Crossrail) Belvedere, Slade Green and Dartford.

London Cannon Street to Slade Green all stations via Greenwich 4tph, of which 2tph continue back to Cannon Street via Bexleyheath and Lewisham on the Bexleyheath line and 2tph to Cannon Street via Sidcup and Hither Green on the Dartford Loop Line.

Luton to Rainham 2tph, Semi Fast calling all stations to West Hampstead Thameslink, St Pancras International, Farringdon, City Thameslink, London Blackfriars, London Bridge, Deptford, Greenwich, Maze Hill, Westcombe Park, Charlton, Woolwich Dockyard, Woolwich Arsenal, Plumstead, Abbey Wood, Slade Green, Dartford, Greenhithe, and all stations to Rainham.

Service patterns

As of May 2019, the service pattern is:

Off-peak & Saturday:

• 2tph between Luton & Rainham via Greenwich (Semi-Fast)
• 2tph between London Cannon Street & Slade Green via Greenwich, continuing to London Cannon Street via the Bexleyheath Line (stopping service)(Also runs 2tph via Bexleyheath first and then via Greenwich)
• 2tph between London Cannon Street & Slade Green via Greenwich, continuing to London Cannon Street via the Dartford Loop Line (stopping service)(Also runs 2tph via the Dartford Loop Line first and then via Greenwich)
• 2tph between London Charing Cross & Dartford via Lewisham & Woolwich Arsenal
• 2tph between London Charing Cross & Dartford via Bexleyheath
• 2tph between London Charing Cross & Gravesend via Dartford Loop Line (Fast service)
• 2tph between London Charing Cross & Dartford via Dartford Loop Line (Semi-Fast)
• 2tph between St Pancras International & Ramsgate, continuing to St Pancras International via the Kent Coast Line and High Speed One, via High Speed One

Sunday:

• 2tph between London Cannon Street & Dartford via Greenwich (stopping service)
• 2tph between London Charing Cross & Dartford via Lewisham and Woolwich Arsenal
• 2tph between Kentish Town & Rainham via Greenwich (Semi-Fast)

Peak hour frequencies vary, with services from the Bexleyheath and Dartford loop lines also running to and from stations to Gillingham.

Future

Abbey Wood station has been rebuilt to become the eastern terminus of Crossrail. However, a possible extension of Crossrail to Gravesend has been safeguarded.

Stations

Slade Green station

Train services working the Line today take the following route; the first ten miles (16 km) passes through many tunnels, included on the list:

• Lewisham
• Blackheath – here is the junction for the Bexleyheath Line
  • Blackheath Tunnel [1 mile (1.6 km) in length]
  • here is the freight branch to Angerstein Wharf
  • junction for the line from Greenwich and the eastern connection with the London and Greenwich Railway, opened in 1878
• Charlton
  • Charlton Tunnel [154 yd (138 m)]
  • Mount Street Tunnel [121 yd (108 m)]
  • Dockyard Tunnel [121 yd (108 m)]
• Woolwich Dockyard
  • Coleman Street Tunnel [89 yd(80 m)]
  • George IV Tunnel [238 yd (214 m]
  • Calderwood Street Tunnel [58 yd (52 m)]
  • Cross Street Tunnel [134 yd (120 m)]
• Woolwich Arsenal
• Plumstead – here the Royal Arsenal railway system connected with the main line
• Church Manor Way Halt – closed
• Abbey Wood
• Belvedere
• Erith
• Slade Green -includes the large carriage-servicing depot
  • here is the triangular junction with the Bexleyheath Line
  • here is the triangular junction with the Dartford Loop Line
• Dartford
• Stone Crossing
• Greenhithe, subtitled "for Bluewater"
  • Greenhithe Tunnel [253 yd (228 m)]
• Swanscombe
• Northfleet – this station is only 305m or so from Ebbsfleet International c. 800m by foot.
• Gravesend: was originally named Gravesend Central to differentiate it from the ex-London, Chatham and Dover Railway station at Gravesend West which closed in 1968
• Milton Road Halt-closed
• Denton Halt- closed
• Milton Range Halt-closed
• Hoo Junction Staff Halt, where the line branches ("The Hundred of Hoo Railway") to Grain. Currently for freight services (not electrified)
• Higham
  • Higham and Strood tunnel – actually two tunnels [total 3931 yd (3595 m)] with a gap of 100 yards (91 m) between.
• Strood – the junction for the Medway Valley Line.

The North Kent Line connects with the LCDR Chatham Main Line at Rochester Bridge Junction, about 200 m beyond Strood station. It totals some 30 miles (48 km) in length.
