| MGM-52 Lance | |
|---|---|

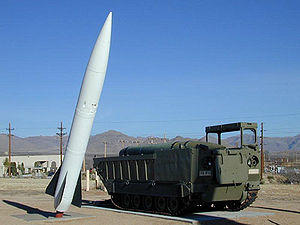

) MGM-52 Lance missile on display at White Sands Missile Range Museum, New Mexico, next to M752 Self-Propelled Launcher. | |
| Type | Tactical ballistic missile |
| Place of origin | United States |
| Service history | |
| In service | 1972–1992 |
| Used by | U.S. Army, Britain, Belgium, Netherlands, Italy, and West Germany |
| Production history | |
| Manufacturer | LTV |
| Unit cost | ~US$800K (1996 dollars)[1] ~US$1.2 million (2019)[2] |
| No. built | 2,133[3] |
| Specifications | |
| Mass | 2,850–3,367 lb (1,293–1,527 kg) depending on warhead[3] |
| Length | 20 ft (6.1 m) |
| Diameter | 22 in (560 mm) |
| Warhead | 1 W70 nuclear or M251 high explosive submunitions[3] |
| Blast yield | 1–100 kilotons of TNT (4.2–418.4 TJ) |
| Engine | Liquid-propellant rocket |
Operational range | 45–75 mi (72–121 km), depending on warhead[3] |
| Maximum speed | >Mach 3 |
Guidance system | inertial guidance |
The MGM-52 Lance is a mobile field artillery tactical surface-to-surface missile (tactical ballistic missile) system used to provide both nuclear and conventional fire support to the United States Army. The missile's warhead was developed at Lawrence Livermore National Laboratory. It was replaced by MGM-140 ATACMS, which was initially intended to likewise have a nuclear capability during the Cold War.[4]
Deployment
The first Lance missiles were deployed in 1972, replacing (together with the US-Navy's nuclear-tipped RIM-2D & RIM-8E/B/D) the earlier Honest John rocket and Sergeant SRBM ballistic missile, greatly reducing the weight and bulk of the system, while improving both accuracy and mobility.[3]
A Lance battery (two fire units) consisted of two M752 launchers (one missile each) and two M688 auxiliary vehicles (two missiles each), for a total six missiles; the firing rate per unit was approximately three missiles per hour. The launch vehicles were also able to carry and launch the MGR-1 Honest John with a special kit for operational war-zone mission-dependent flexibility.[3]
The missile's engine had an unusual arrangement, with a small sustainer engine mounted within a toroidal boost engine.[5]
Payload
The payload consisted either of a W70 nuclear warhead with a yield of 1–100 kt (4.2–418.4 TJ) or a variety of conventional munitions. The W70-3 nuclear warhead version was one of the first warheads to be battlefield-ready with an "enhanced radiation" (neutron bomb) capability.[6] Conventional munitions included single conventional shaped-charge warhead for penetrating hard targets and for bunker busting or a cluster configuration containing 836 M74 bomblets for anti-personnel and anti-materiel uses. The original design considered a chemical weapon warhead option, but this development was cancelled in 1970.
Deactivation
The Lance missile was removed from service following the end of the Cold War and was partially replaced in the conventional role by the MGM-140 ATACMS.[7]
Operators
)

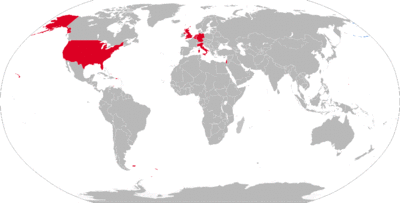

Former operators
United States United States Army
- 1st Battalion, 12th Field Artillery Regiment (1973–1992) Fort Sill, Oklahoma[3]
- 1st Battalion, 32nd Field Artillery Regiment (1975–1991) Hanau, Germany
- 6th Battalion, 33rd Field Artillery Regiment (1975–1987); redesignated as 6th Battalion, 32nd Field Artillery Regiment (1987–1991) Fort Sill[10] (One battery was forward deployed to South Korea)[11]
- 2nd Battalion, 42nd Field Artillery Regiment (1974–1987); redesignated as 4th Battalion, 12th Field Artillery Regiment (1987–1991) Crailsheim, Germany
- 3rd Battalion, 79th Field Artillery Regiment (1974–1986); redesignated as 2nd Battalion, 32nd Field Artillery Regiment (1986–?) Giessen, Germany
- 1st Battalion, 80th Field Artillery Regiment (1974–1987); redesignated as 3rd Battalion, 12th Field Artillery Regiment (1987–1991) Aschaffenburg, Germany
- 1st Battalion, 333rd Field Artillery Regiment (1973–1986); redesignated as 3rd Battalion, 32nd Field Artillery Regiment (1986–?) Wiesbaden, Germany
- 2nd Battalion, 377th Field Artillery Regiment (1974–1987); redesignated as 2nd Battalion, 12th Field Artillery Regiment (1987–1992) Herzogenaurach, Germany
- 50 Missile Regiment Royal Artillery (disbanded and retired weapons in 1993)
Israel Israeli Defence Forces
Netherlands Royal Netherlands Army
- 129th Artillery Battalion (1979–1992)
.svg.png){kind=small}
Belgium Belgian Land Component
- 3rd Artillery Battalion (1977-1992)
- 3rd Missile Brigade "Aquileia" (up to 1991, then from 1992 to 2001, 3rd Missile Rgt)
- 150th Rocket Artillery Battalion
- 250th Rocket Artillery Battalion
- 350th Rocket Artillery Battalion
- 650th Rocket Artillery Battalion
See also
- Sea Lance, a similarly named, but unrelated submarine-launched missile.
- List of missiles
- M-numbers
