Differential pulse-code modulation (DPCM) is a signal encoder that uses the baseline of pulse-code modulation (PCM) but adds some functionalities based on the prediction of the samples of the signal. The input can be an analog signal or a digital signal.
If the input is a continuous-time analog signal, it needs to be sampled first so that a discrete-time signal is the input to the DPCM encoder.
- Option 1: take the values of two consecutive samples; if they are analog samples, quantize them; calculate the difference between the first one and the next; the output is the difference.
- Option 2: instead of taking a difference relative to a previous input sample, take the difference relative to the output of a local model of the decoder process; in this option, the difference can be quantized, which allows a good way to incorporate a controlled loss in the encoding.
Applying one of these two processes, short-term redundancy (positive correlation of nearby values) of the signal is eliminated; compression ratios on the order of 2 to 4 can be achieved if differences are subsequently entropy coded because the entropy of the difference signal is much smaller than that of the original discrete signal treated as independent samples.
DPCM was invented by C. Chapin Cutler at Bell Labs in 1950; his patent includes both methods.[1]
Option 1: difference between two consecutive quantized samples
The encoder performs the function of differentiation; a quantizer precedes the differencing of adjacent quantized samples; the decoder is an accumulator, which if correctly initialized exactly recovers the quantized signal.
Option 2: analysis by synthesis

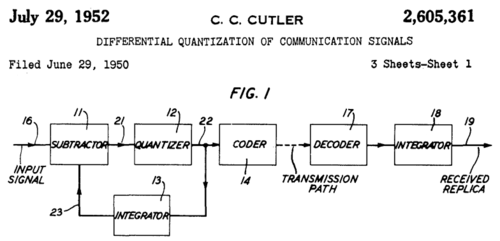

The incorporation of the decoder inside the encoder allows quantization of the differences, including nonlinear quantization, in the encoder, as long as an approximate inverse quantizer is used appropriately in the receiver. When the quantizer is uniform, the decoder regenerates the differences implicitly, as in this simple diagram that Cutler showed:
)
See also
- Adaptive DPCM
- Delta modulation, a special case of DPCM where the differences eQ[n] are represented with 1 bit as ±Δ
- Pulse modulation methods
- Delta-sigma modulation
