Clark Bridge | |
|---|---|

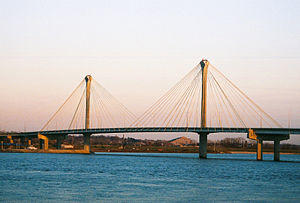

) View from West Alton, Missouri | |
| Coordinates | 38°52′56″N 90°10′44″W / 38.88222°N 90.17889°W |
| Carries | 4 lanes of  US 67 |
| Crosses | Mississippi River |
| Locale | West Alton, Missouri and Alton, Illinois |
| Other name(s) | Clark Superbridge |
| Maintained by | Illinois Department of Transportation |
| Characteristics | |
| Design | Cable-stayed bridge |
| Total length | 4,620 feet (1,408 m) |
| Longest span | 756 feet (230 m) |
| History | |
| Opened | January 1994 |
| Location | |
 | |
The Clark Bridge is a cable-stayed bridge across the Mississippi River between West Alton, Missouri and Alton, Illinois. Named after explorer William Clark like the bridge it replaced, the cable-stayed bridge opened in 1994. It carries U.S. Route 67 across the river. It is the northernmost river crossing in the St. Louis metropolitan area.
The new $85 million, 108-foot-wide bridge (33 m) replaced the old Clark Bridge, which was only 20 ft wide (6.1 m).[1] The truss bridge was built in 1928. The new bridge carries two lanes of divided traffic in each direction, as well as two bike lanes. The old bridge carried only two lanes (similar to the upstream Champ Clark Bridge).
The bridge is sometimes referred to as the Super Bridge. Its construction was featured in a NOVA documentary entitled Super Bridge, which highlighted the challenges of building the bridge, especially during the Great Flood of 1993. Designed by Hanson Engineers under contract to Illinois Department of Transportation (DOT), the Clark Bridge was the first in the United States in which "such a light steel-framed cable-stayed design was combined with a cable saddle type of pylon".[1] The bridge used 8,100 tons of structural steel; 44,100 cubic yards of concrete; and more than 160 miles of cable wrapped with four acres of yellow plastic piping.[2]
See also
- List of crossings of the Upper Mississippi River
- Lewis Bridge
Gallery
The Clark Bridge. View is upriver to the northwest from the Melvin Price Locks below the bridge
Clark Bridge as seen from the Missouri side of the Mississippi
Clark Bridge seen from the Alton Marina
Clark Bridge at Alton, Illinois from the Missouri side.
View of the Clark Bridge spanning the Mississippi River from the Alton, Illinois side
Clark Bridge at night; taken from the Ellis Island Bird Sanctuary, West Alton, Missouri.
)
)
)
)
)
)
)
