| XP-15 / XF5B-1 | |
|---|---|
) | |

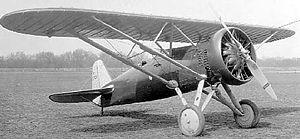

| The sole XP-15 | |
| Role | Fighter |
| National origin | United States |
| Manufacturer | Boeing |
| First flight | XP-15 - 30 January 1930[1] XF5B-1 - February 1930[1] |
| Status | XP-15 - Destroyed |
| Primary users | United States Army Air Corps United States Navy |
| Number built | 2 (1 XP-15, 1 XF5B-1) |
The Boeing XP-15 was an American prototype monoplane fighter.
Design and development
This aircraft was essentially a monoplane version of the Boeing P-12, differing in having the lower wing omitted and in having all-metal construction as well as altered ailerons. The XP-15 had a split-axle undercarriage and a tail wheel.[1]
Boeing numbered the craft as its Model 202; while the United States Army accepted it for testing and designated it as XP-15, they never actually purchased it, and it retained its civil registration of X-270V.[1]
Operational history
The XP-15 first flew in January 1930, when it was discovered that the vertical stabilizer (a P-12C type) needed to be larger in order to compensate for the single wing. Initial testing showed a top speed to 178 mph, but with enlarged tail surfaces and a Townend cowling, it recorded 190 mph at 8,000 ft. The aircraft performed poorly, with a poor rate of climb and a high landing speed. The USAAC did not order the aircraft for production and on 7 February 1931, the prototype was destroyed when a propeller blade failed and the engine tore loose from its mounts.[1]
The Navy was offered the similar Model 205. It first flew in February 1930. One was bought by the US Navy as the XF5B-1, but by the time flight testing was complete in 1932, other aircraft were ordered instead.
Variants
- XP-15
- 1 built
- XF5B-1
- 1 built
Operators
)
.svg.png){kind=small}
- United States Army Air Corps
- United States Navy
Specifications (XP-15)
Data from Angelucci 1987, pp. 81–82.[1]
General characteristics
- Crew: one
- Length: 21 ft 0 in (6.40 m)
- Wingspan: 30 ft 6 in (9.29 m)
- Height: 9 ft 4.5 in (2.84 m)
- Wing area: 157.3 sq ft (14.61 m2)
- Empty weight: 2,052 lb (931 kg)
- Gross weight: 2,746 lb (1,246 kg)
- Powerplant: 1 × Pratt & Whitney SR-1340D Wasp , 525 hp (391 kW)
Performance
- Maximum speed: 190.2 mph (306 km/h, 165.3 kn)
- Cruise speed: 160 mph (257 km/h, 140 kn)
- Range: 420 mi (676 km, 360 nmi)
- Service ceiling: 27,650 ft (8,428 m)
- Rate of climb: 1,800 ft/min (9.15 m/s)
Armament
- 2 x .30 inch machine guns
