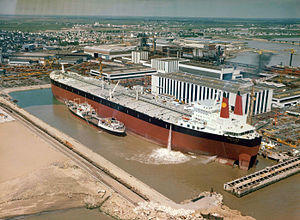

) The oil tanker Batillus at the end of her construction in Saint-Nazaire, being fueled by Port-Vendres. | |
| Class overview | |
|---|---|
| Name: | Batillus class |
| Operators: | ){kind=small} Société Maritime Shell France |
| In service: | 1976–2003 |
| Completed: | 4 |
| Retired: | 4 |
| General characteristics | |
| Type: | Supertanker |
| Tonnage: | |
| Displacement: |
|
| Length: | LOA: 414.22 m (1,359.0 ft) LBP: 401.10 m (1,315.9 ft) |
| Beam: | 63.01 m (206.7 ft) |
| Draft: | 28.5 m (94 ft) |
| Depth: | 35.92 m (117.8 ft) |
| Installed power: | 64,800 bhp (48.3 MW) |
| Propulsion: |
|
| Speed: | 16 kn (30 km/h; 18 mph) |
| Notes: | [2][3] |
The Batillus-class supertankers was a class of supertanker ships built in France in the late 1970s, with four ships of this class built between 1976 and 1979. Three of the ships were scrapped after less than ten years of oil transport service each, with the fourth one scrapped in 2003.
All four tankers were built in the Bassin C dock of the Chantiers de l'Atlantique shipyards at Saint Nazaire, France.
History
Vessels in class
- Batillus, built in 1976, scrapped in 1986.[4]
- Bellamya, built in 1976, scrapped in 1986.[5]
- Pierre Guillaumat, built in 1977, scrapped in 1983.[6]
- Prairial, built in 1979, renamed Sea Brilliance, renamed Hellas Fos, renamed Sea Giant, scrapped in 2003.[3]
Measurements
While being the largest ships ever built by gross tonnage until Pioneering Spirit, the four Batillus-class ships were the second largest ever constructed when measuring deadweight tonnage or length overall, behind only the supertanker Seawise Giant (renamed five times, including to Knock Nevis), which existed from 1979 to 2010.[7]
While there were minor differences between the four Batillus-class ships, they all approached a gross tonnage (GT) of 275,000 and 555,000 tonnes deadweight (DWT) tonnage, and had a length overall of over 414 metres (1,358 ft) (longer than all but a few of the tallest skyscrapers in the world).
The Batillus class had a depth of nearly 36 metres (118 ft 1 in) from the main deck and a full load draft of 28.5 metres (93 ft 6 in), second only to the ULCC tanker Al Andalus,[8] which had a draft of 33.51 metres (109 ft 11 in), and slightly greater than the two Globtik Tokyo-class ULCCs.
Unlike Seawise Giant and most other ULCCs, the Batillus-class vessels had twin screws, twin boilers of full size and power, and twin rudders. As a result, in an emergency they could more easily and safely be operated than with a single propeller and a single boiler.
See also
- List of world's longest ships
- TI-class supertanker
