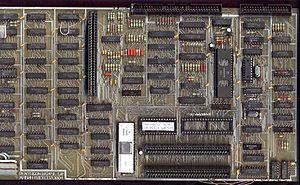

) Pentagon-1024SL v1.x | |
| Also known as | Пентагон |
|---|---|
| Type | Home computer |
| Release date | 1989 |
| Operating system | Sinclair BASIC, TR-DOS |
| CPU | КР1858ВМ1/3, Т34ВМ1, Z80A, B, H @ 3.5 MHz |
| Memory | 48 to 1024 KB |
| Website | pentagon |
The Pentagon (Пентагон) home computer was a clone of the British-made Sinclair ZX Spectrum 128. It was manufactured by amateurs in the former Soviet Union, following freely distributable documentation. Its PCB was copied all over the ex-USSR in 1991-1996, which made it a widespread ZX Spectrum clone. The name "Pentagon" derives from the shape of the original PCB (Pentagon 48), with a diagonal cut in one of the corners. [1]
Many simple devices (upgrades) were invented to connect to the Pentagon with a soldering iron.[2]
Versions[1]
- Pentagon 48K (1989 by Vladimir Drozdov)
- Pentagon 128K (1991)
- Pentagon 128K 2+ (1991 by ATM)
- Pentagon 128K 3+ (1993 by Solon)
- Pentagon 1024SL v1.x (2005 by Alex Zhabin)
- Pentagon-1024SL v2.x (2006 by Alex Zhabin)
- Pentagon ver.2.666 (2009 by Alex Zhabin)[3]
The Pentagon 1024SL v2.3 included most of the upgrades of the standard Spectrum architecture, including 1024 KB RAM, Beta 128 Disk Interface and ZX-BUS slots (especially for IDE and General Sound cards). This model also featured a "turbo" mode (7 MHz instead of the original's 3.50 MHz).
)
Upgrades from the original ZX Spectrum
- Extra RAM ranging from 256 KB to 4 MB
- Several soundboard possibilities such as Covox, SounDrive or DMA UltraSound
- additional video modes: 512x192 monochrome, 384x304, 256x192x15 (without using attributes)
- CMOS with persistent real-time clock
- IDE Controller for hard drives
- "Turbo Mode" that clocks the CPU up to 7 MHz
References
- ^ a b "Pentagon — SpeccyWiki". speccy.info.
- ^ "Russian Most Popular Spectrum Models". www.worldofspectrum.org. Archived from the original on 2012-07-16. Retrieved 2004-09-08.
- ^ "Информация". pentagon.nedopc.com.
