| Flakpanzer IV/3.7cm FlaK "Ostwind" | |
|---|---|

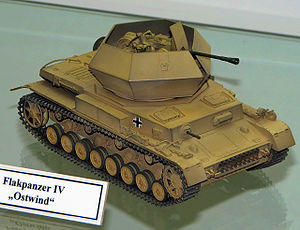

.jpg')) Scale model of an Ostwind | |
| Type | Self-propelled anti-aircraft gun |
| Place of origin | Nazi Germany |
| Production history | |
| Produced | 1944-1945 |
| No. built | 43–45 |
| Specifications | |
| Mass | 25 tonnes |
| Length | 5.92 m (19 ft 5 in) |
| Width | 2.95 m (9 ft 8 in) |
| Height | 3 m (9 ft 10 in) |
| Crew | 5 (Commander, Gunner, Loader, Driver, Radio Operator) |
| Armor | 10–80 mm (0.39–3.15 in) |
Main armament | 1x 3.7 cm FlaK 43 1,000 rounds |
Secondary armament | 1× 7.92 mm Maschinengewehr 34 machine gun 1,350 rounds |
| Engine | 12-cylinder Maybach HL120 TRM 300 PS (296 hp, 221 kW gasoline) |
| Power/weight | 12 PS/tonne |
| Suspension | leaf spring |
Operational range | 200 km (120 mi) |
| Maximum speed | 38 km/h (24 mph) |
The Flakpanzer IV "Ostwind" (East Wind in English) was a German self-propelled anti-aircraft gun based on the Panzer IV tank. It was developed in 1944 as a successor to the earlier Flakpanzer IV/2 cm Vierling Wirbelwind.
The Panzer IV's turret was removed and replaced with an open-top, hexagonal turret that housed a 3.7 cm FlaK 43. In addition to its intended role as an anti-aircraft weapon, the fast-firing gun was highly effective against light vehicles and minor fortifications. A closed-top design would have been preferable, but this was not possible due to the heavy smoke generated by the gun.
The Ostwind's main improvement over the Wirbelwind was the FlaK 43's increased range and stopping power over the 2 cm Flakvierling 38 and slightly better armor on its turret, albeit it had a lower fire rate. To solve this problem a project was undertaken to arm the Ostwind with two 37 mm cannons, known as the Ostwind II. A single prototype was built but the war ended before anything truly became of it.
Although an order for 100 vehicles was placed in August 1944, only 44 vehicles were completed (37 converted from existing Panzer IVs and 7 new production vehicles) from December 1944 to March 1945, all work being carried out by Ostbau Werke in Sagan, Silesia.
Comparable vehicles
- Möbelwagen
- 40M Nimród
- M19 Multiple Gun Motor Carriage
- Crusader Mk. III Anti-Aircraft Tank Mk. I
- ZSU-37
- 40 mm cannon armed AMX-13
