LB&SCR C1 class

LB&SCR C1 class

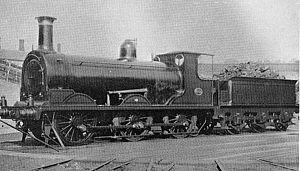

C1 class No.422 c. 1890
Type and origin Power type Steam Designer William Stroudley Builder LBSCR Brighton Works Build date 1882 (6), 1884 (3), 1887 (3)
Specifications Configuration: ​  • Whyte 0-6-0  • UIC Cn Gauge 4 ft 8 1&fras1;2 in (1,435 mm) standard gauge Driver dia. 60 in (1.524 m) Wheelbase 15 ft 3 in (4.65 m) Length 48 ft 7 in (14.81 m) Loco weight 40.35 long tons (41.00 t; 45.19 short tons) Fuel type Coal Fuel capacity 6.5 long tons (6.6 t; 7.3 short tons) Water cap 2,520 imp gal (11,500 l; 3,030 US gal) Firebox:  • Firegrate area 20.9 sq ft (1.94 m2) Boiler pressure 150 psi (10.34 bar; 1.03 MPa) Heating surface:  • Tubes 1,312 sq ft (121.9 m2)  • Firebox 101 sq ft (9.4 m2) Cylinders Two, inside Cylinder size 18 1&fras1;4 in × 26 in (464 mm × 660 mm)
Performance figures Tractive effort 18,400 lbf (81.85 kN)
Career Operators LB&SCR Class C1 Withdrawn 1907–1924 Disposition All Scrapped

The London, Brighton and South Coast Railway (LB&SCR) C1 class was a type of 0-6-0 freight steam locomotive designed by William Stroudley.

Construction and use

The twelve locomotives in the class were built by Brighton Works between 1882 and 1887, based upon Stroudley's disappointing C class 0-6-0 design of 1873–74, but incorporating a larger boiler. However, the new locomotives were not as successful as Stroudley's designs for passenger locomotives and no further examples were built. Their comparatively short lives were spent hauling freight trains on the LB&SCR. Most of the members of the class were withdrawn between 1907 and 1911, but two examples survived until 1920 and 1924 respectively. One locomotive (number 428) was sold to the Stratford-on-Avon & Midland Junction Railway, and survived until June 1925. ^[1]

Accidents

On March 11th, 1905, No. 425 ran into a turntable well.^[2]

Locomotive Summary

References

• Bradley, D.L. (1969). Locomotives of the London Brighton and South Coast Railway: Part 1. Railway Correspondence and Travel Society.
• Haresnape, Brian (1985). Stroudley Locomotives, a pictorial history. Shepperton, Surrey: Ian Allan Limited. ISBN 0-7110-1391-8.
