| Intervertebral foramen | |
|---|---|

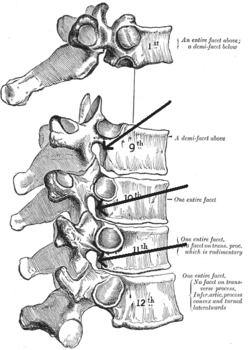

) Peculiar thoracic vertebrae. Intervertebral foramina are indicated by arrows. | |
) Sacrum, pelvic surface. (The two columns of four holes are the intervertebral foramina of sacrum, visible but not labeled.) | |
| Details | |
| Identifiers | |
| Latin | foramen intervertebrale (pl. foramina intervertebralia) |
| TA98 | A02.2.01.008 A02.2.05.011 |
| TA2 | 1019, 1081 |
| FMA | 75346 |
| Anatomical terms of bone | |
The intervertebral foramen (also called neural foramen, and often abbreviated as IV foramen or IVF), is a foramen between two spinal vertebrae. Cervical, thoracic, and lumbar vertebrae all have intervertebral foramina.
The foramina, or openings, are present between every pair of vertebrae in these areas. A number of structures pass through the foramen. These are the root of each spinal nerve, the spinal artery of the segmental artery, communicating veins between the internal and external plexuses, recurrent meningeal (sinu-vertebral) nerves, and transforaminal ligaments.
When the spinal vertebrae are articulated with each other, the bodies form a strong pillar that supports the head and trunk, and the vertebral foramen constitutes a canal for the protection of the medulla spinalis (spinal cord).
The size of the foramina is variable due to placement, pathology, spinal loading, and posture.
Foramina can be occluded by arthritic degenerative changes and space-occupying lesions like tumors, metastases, and spinal disc herniations.
Specifically, the intervertebral foramen is bordered by the superior notch of the adjacent vertebra, the inferior notch of the vertebra, the intervertebral joint and the intervertebral disc.
Projectional radiograph of a man presenting with pain by the nape and left shoulder, showing a stenosis of the left intervertebral foramen of cervical spinal nerve 4 due to age-related degenerative changes, corresponding with the affected dermatome.
)
