| A.50 | |
|---|---|
.jpg')) | |

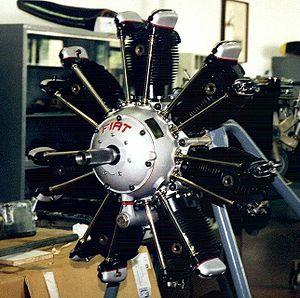

| Fiat A.50 radial aircraft engine at ITIS "Guglielmo Marconi" in Forlì, Italy. | |
| Type | Piston engine |
| Manufacturer | Fiat |
| First run | 1928 |
The Fiat A.50 was a seven-cylinder, air-cooled radial engine for aircraft use built in Italy in the 1930s. It was first run in 1928, it had a bore and stroke of 100 mm × 120 mm (3.94 in × 4.72 in)(6.6 L / 402.6 cuin) and was rated at 78 kW (105 hp) at 1,800 rpm.
Variants
- Fiat A.50
- Fiat A.50 S
Applications
- Ambrosini SAI.3
- Ambrosini SAI.10
- CANSA C.5
- CANT 26
- Caproni Ca.100
- Fiat AS.1
- IMAM Ro.5
Specifications
Data from
General characteristics
- Type: Seven-cylinder radial engine
- Bore: 100 mm (3.94 in)
- Stroke: 120 mm (4.72 in)
- Displacement: 6.6 L (402.6 cu in)
Components
- Fuel system: Carburettor
- Cooling system: Air-cooled
Performance
- Power output: 78 kW (105 hp)
See also
Related lists
References
Gunston, Bill (1986). World Encyclopedia of Aero Engines. Wellingborough: Patrick Stephens. p. 57.
