Class 4000 |
---|
 |
Type and origin |
---|
Power type | Electric |
---|
Builder | Bombardier |
---|
Build date | 2004–2005 |
---|
Total produced | 20 |
---|
|
Specifications |
---|
Configuration:
| |
---|
• AAR | B-B |
---|
• UIC | Bo′Bo′ |
---|
Gauge | 1,435 mm (4 ft 8 1&fras1;2 in) |
---|
Length | 18.9 m (62 ft 0 in) |
---|
Axle load | 21 tonnes (21 long tons; 23 short tons) |
---|
Loco weight | 84 tonnes (83 long tons; 93 short tons) |
---|
Electric system/s | 25 kV 50 Hz AC 15 kV 16.7 Hz AC |
---|
Current pickup(s) | Pantograph |
---|
|
Performance figures |
---|
Maximum speed | 140 km/h (87 mph) |
---|
Power output | 5,600 kW (7,500 hp) |
---|
|
Career |
---|
Operators | CFL |
---|
Class | 4000 |
---|
Number in class | 20 |
---|
Numbers | 4001–4020 |
---|
Official name | TRAXX |
---|
Locale | Luxembourg |
---|
Delivered | 2004-2005 |
---|
Disposition | in service |
---|
|

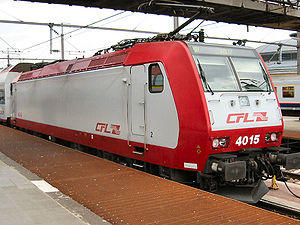

The CFL class 4000 is a variant of the Bombardier TRAXX locos found working across Europe. Within Luxembourg they work on the local passenger services (crossing the borders into France or Belgium as necessary. They also work freight traffic. Their 15 kV capability allows them to work across the border to Germany. Even though they are capable of running in France, they are not allowed to do so for security reasons.
Their slab sided body work has been used for advertising.
