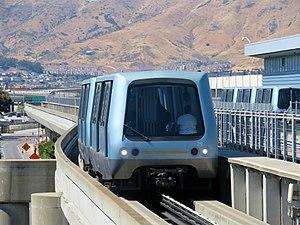

) AirTrain nearing West Field Road station in 2018 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

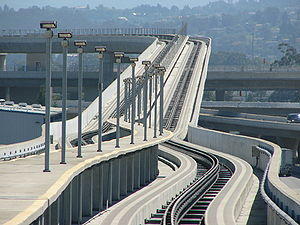

) AirTrain guideway | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Overview | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Owner | San Francisco Airports Commission | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Locale | San Francisco International Airport | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Transit type | People mover | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Number of lines | 2 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Number of stations | 10 (1 planned) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Website | https://www.flysfo.com/to-from/getting-around-sfo | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Operation | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Began operation | February 24, 2003 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Operator(s) | San Francisco Airports Commission | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Character | Bombardier-built airport rail link | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Number of vehicles | 38 Bombardier Innovia APM 100 people mover vehicles (3 on order) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Technical | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| System length | 6 mi (10 km) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| No. of tracks | 2 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Track gauge | Rubber-tired | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
.svg.png "uABZg+l; uexkSTRc1; lhSTR(r); lhSTR+l(l); NULfg"){kind=small}
.svg.png "uABZg+l; uexkSTRc1; lhSTR(r); lhSTR+l(l); NULfg"){kind=small}
.svg.png){kind=small}
AirTrain is a fully automated people mover at San Francisco International Airport (SFO) that opened on February 24, 2003. It operates 24 hours a day on two separate lines, covering a total of 6 miles (9.7 km). The service is free of charge, funded by a $20 "airport fee" charged by rental car companies.[1]
Lines and stations
AirTrain operates on two lines—Red Line and Blue Line—both of which run every 2 1&fras1;2 minutes. The Red Line travels in a clockwise loop, beginning with Garage G station and ending with Garage A station, which takes about 9 minutes to complete. The Blue Line travels in a counterclockwise loop, serving the same stations in reverse order, and also proceeding to West Field Road and the Rental Car Center, which takes 19 minutes for a round trip.
AirTrain does not provide access to SFO's long-term parking garage and lots; instead, passengers must take a free airport shuttle bus between the airport terminals and the long-term parking areas. The end of the track past the Rental Car Center station is only about 600 yards (0.34 mi) away from the airport's long-term parking garage; an extension to the garage is expected to be in service in 2020.[2]
A $15 million infill station was constructed to serve the Grand Hyatt at SFO, a new airport hotel.[3] The hotel opened on October 7, 2019.[4]
| Station | Lines | Notes |
|---|---|---|
| Grand Hyatt at SFO | Red Line Blue Line |
|
| Garage A | Red Line Blue Line |
|
| International Terminal A | Red Line Blue Line |
|
| Terminal 1 | Red Line Blue Line |
|
| Terminal 2 | Red Line Blue Line |
|
| Terminal 3 | Red Line Blue Line |
|
| International Terminal G | Red Line Blue Line |
|
| Garage G / BART | Red Line Blue Line |
|
| West Field Road | Blue Line |
|
| Rental Car Center | Blue Line |
|
The AirTrain stations at the International Terminal are located one level above ticketing, at both ends of the main hall. Stations at Terminals 1, 2, and 3 are located on level 5 of the domestic parking garage and can be accessed from mezzanine level bridges located near security checkpoints B, D, and F.
Technical details
.jpg'))
The AirTrain system was built by Bombardier Transportation at a cost of US $430 million and is composed of 38 Innovia APM 100 cars coupled in trains of up to three cars. The APM 100 cars can also be found at airports in Tampa, Denver, Atlanta, Seattle-Tacoma, Houston, and Madrid. They are operated automatically under Bombardier's Cityflo 650 CBTC (communications-based train control) signalling technology, making it one of the first radio-based train control systems to enter service.[5]
The entire AirTrain fleet is accessible and allows rented baggage carts on board.
Future expansion and upgrades
,_March_2020.jpg'))
A Lot DD station that is under construction will serve a long-term parking garage (Lot DD) and rental car center and would operate on the Blue Line only. The extension is expected to open in 2023-24.[6]
Additionally, the Airport Development Plan from 2016 forecasts that ridership on the two lines will be over capacity in the future (42% and 87% over capacity on the Red and Blue Lines respectively)[7] and recommends upgrades that would increase capacity. Specific upgrades include acquiring 30 additional AirTrain cars, upgrading existing stations to accommodate 4-car trains, and upgrading the maintenance facility to accommodate additional vehicles.[8]
