| AC-12 | |
|---|---|
) | |
| Role | Light helicopter |
| National origin | Spain |
| Manufacturer | Aerotécnica |
| Designer | Jean Cantinieau |
| First flight | 20 July 1956 |
| Primary user | Spanish Air Force |
| Number built | 12 |
The Aerotécnica AC-12 Pepo was a Spanish two-seat light helicopter of the 1950s by Aerotécnica.
Design and development
Aerotécnica AC-12 was designed by Jean Cantinieau and like other Cantinieau designs featured a distinctive "spine" above the fuselage pod that carried the engine ahead of the rotor assembly. Development costs were borne by the Spanish government, and the first of two prototypes took to the air on 20 July 1954.[1]
Operational history
Twelve (two prototypes and 10 production) were ordered for the Spanish Air Force where they served for three years under the designation EC-XZ-2.
Operators
.svg.png){kind=small}
Specifications
)

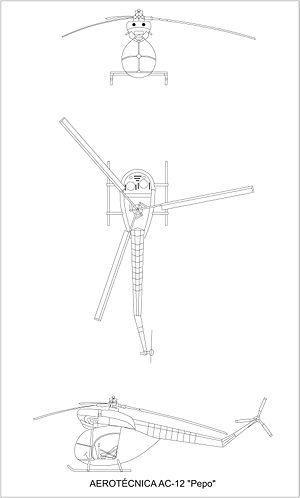

Aerotécnica AC-12 outline
Data from Jane's All The World's Aircraft 1961–62[2]
General characteristics
- Crew: 2
- Length: 7.55 m (24 ft 9 in)
- Height: 2.75 m (9 ft 0 in)
- Empty weight: 500 kg (1,102 lb)
- Gross weight: 750 kg (1,653 lb)
- Max takeoff weight: 820 kg (1,808 lb)
- Powerplant: 1 × Lycoming O-360-B2A air-cooled flat-four, 125 kW (168 hp)
- Main rotor diameter: 8.50 m (27 ft 11 in)
- Main rotor area: 56.75 m2 (610.9 sq ft)
Performance
- Maximum speed: 140 km/h (87 mph, 76 kn)
- Cruise speed: 115 km/h (71 mph, 62 kn)
- Range: 230 km (140 mi, 120 nmi) (normal range)
- Ferry range: 450 km (280 mi, 240 nmi) (with auxiliary tanks)
- Endurance: 2 hours
- Service ceiling: 4,000 m (13,000 ft)
- Rate of climb: 5.00 m/s (985 ft/min)
Gallery
Cockpit detail
Rotor and top detail
)
)
)
